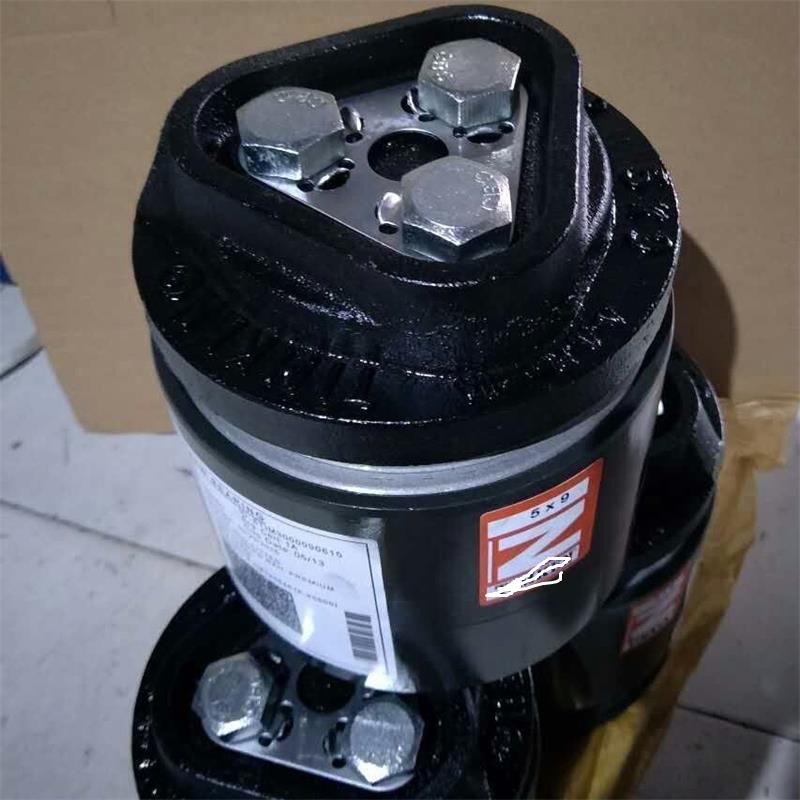

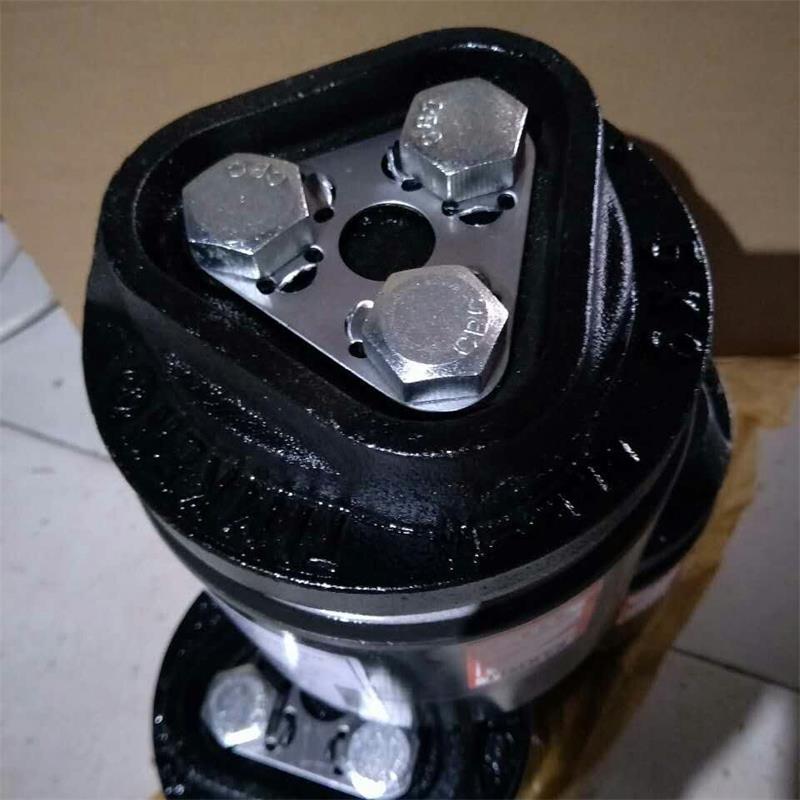

HM124646 HM124618XD railway bearing 119.062*195.262*142.875mm

(1)BoreD

DiameterK

For 3000 hr L

mm

mm

mm

mm

90lbfThrust, C

n

(4)C (5 x 9)HM124646

119.062

195.262

108.7

142.875

172000

44500

<span background-color:#171717;"="" style="box-sizing: border-box; color: rgb(229, 51, 51);">

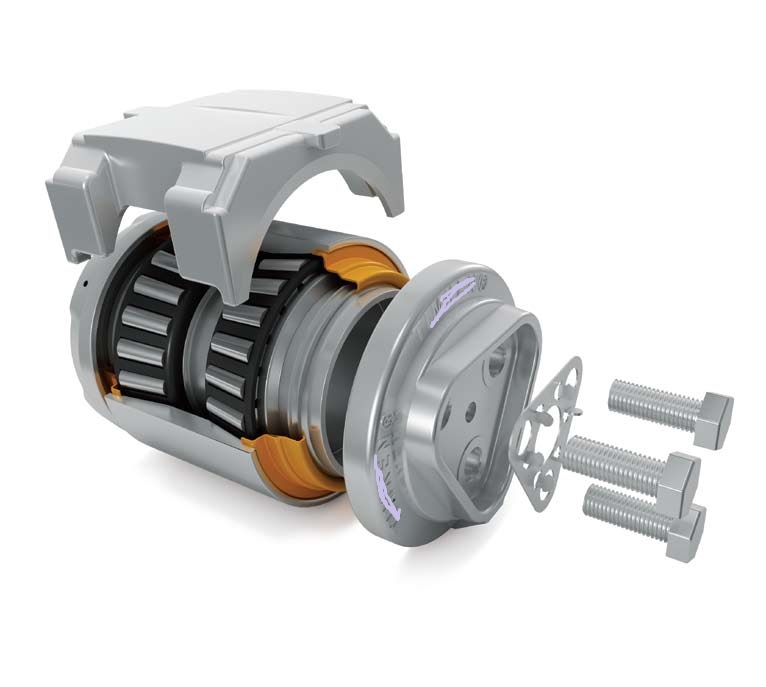

In addition to railroad applications, AP bearings are successfully used in many types of industrial applications. This can be attrib- uted to many factors including the bearing’s high load carrying ca- pacity and its adaptability to a wide variety of applications.

Below is the complete model list that we are producing:

  Class     Inner Race (Cone) Number Outer Race (Cup) Number d (1) Bore D (2) Outside Diameter   Kt C Outer Race Width Dynamic Rating @ 500 RPM For 3000 hr L10     mm in. mm in. mm in. mm in. Radial, C90 n lbf Thrust, Ca90 n lbf   K Factor (4) B (4 1⁄4 x 8) HM120848 HM120817XD 101.600 4.0000 165.100 6.5000 91.3 3.59 114.300 4.5000 120000 26900 31000 7000 2.21 C (5 x 9) HM124646 HM124618XD 119.062 4.6875 195.262 7.6875 108.7 4.28 142.875 5.6250 172000 38600 44500 10000 2.21 D (5 1⁄2 x 10) HM127446 HM127415XD 131.750 5.1870 207.962 8.1875 113.5 4.47 152.400 6.0000 186000 41800 48500 10900 2.21 E (6 x 11) HM129848 HM129814XD 144.450 5.6870 220.662 8.6875 120.6 4.75 163.512 6.4375 195000 43800 50700 11400 2.21 F (6 1⁄2 x 12) HM133444 HM133416XD 157.150 6.1870 252.412 9.9375 136.5 5.38 184.150 7.2500 266000 59700 69000 15500 2.21 G (7 x 12) HM136948 HM136916XD 177.787 6.9995 276.225 10.8750 134.9 5.31 185.725 7.3120 305000 68600 79200 17800 2.21 G (7 x 14) HM136948 HM136916XD 177.787 6.9995 276.225 10.8750 134.9 5.31 185.725 7.3120 305000 68600 79200 17800 2.21 GG (7) H337846 H337816XD (3) 177.787 6.9995 301.701 11.8780 139.7 5.50 196.850 7.7500 388000 87300 132110 29700 1.69 K (8) M241547 M241513XD 203.200 8.0000 301.625 11.8750 108.0 4.25 140.097 5.5156 266000 59700 86800 19500 1.76

Introduction of our company:

UFINE BEARING CO., LTD  is a Chinese bearing manufacturer which is located in the city ofJiNan - the provincial capital of ShanDong province, China. The enterprise professionalconcentrates on manufacturing all kinds of bearings as our own brand “UFE”, mainlyinclude roller bearings and ball bearings. And we have also set a long-term cooperationwith several famous bearing companies in the world, such as NSK, TIMKEN,NACHI, KOYO, NTN,SNR. The products we produce have already been sold to all over China andalso abroad, the bearing brand “UFE” enjoys high states in the rolling bearing industry ofChina and is highly praised by our customers
