Tapered Roller Bearing K67390D/K67322-K67322D K67791DGW/K67720-K67721D KM238849D/KM238810-KM238810D 67885D/67820-67820D M240648DD/M240611-M240611D 93800D/93125-93127D

Wechat/Whatsapp: 008613791051960

Email：ufinebearing@gmail.com

              bruce@ufinebearing.com

If you need any tapered roller bearing, please feel free to contact us.

Ufine Bearing CO., LTD is a Chinese bearing manufacturer which is located in the city of JiNan - the provincial capital of ShanDong province, China. The enterprise professional concentrates on manufacturing all kinds of bearings as our own brand “ZQQR”, mainly include roller bearings and ball bearings. And we have also set a long-term cooperation with several famous bearing companies in the world, such as  NSK, NACHI, KOYO, INA. The products we produce have already been sold to all over China and also abroad, the bearing brand “UFE” enjoys high states in the rolling bearing industry of China and is highly praised by our customers.

Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy

assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.

Taper roller bearing are uniquely designed to manage both thrust and radial loads on rotating shafts and in housings.

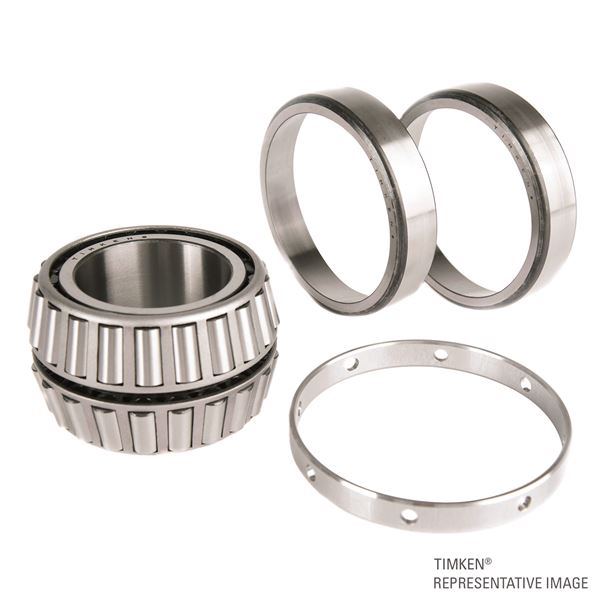

Taper roller bearing are designed to carry both thrust and radial loads and consist of four components: the cone, or inner ring; the

cup, or outer ring; the tapered rollers, or rolling elements; and the cage, or roller retainer.

Tapere roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends

on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.

Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered

Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.

Taper Roller Bearing Application

China Factory Supply Single Row and Double Row Taper Roller Bearing

Material handling machinery:mining machinery, textile machinery, lifting equipment, Agricultural machinery: tractors, harvesting machinery,

etc.

Heavy-duty mining machinery: metallurgical machinery, mining machinery, lifting machinery, loading and unloading machinery,industrial

vehicles, cement equipment, etc.

Construction Machinery: forklifts, earth moving machinery, compaction machinery, concrete machinery, etc.

The general petrochemical machinery: oil drilling machinery, oil refining machinery, chemical machinery, gas compressors, paper machinery,

printing machinery, etc.

Machine tools: forging machinery, foundry machinery, woodworking machinery, etc.

Car: truck, road, bus, car, modified car, motorcycle ,etc.

Taper Roller Bearing Advantage

1: Suitable for the radial and axial loaded.

2: With low wear rate and long life service.

3: Can be used over a large temperature range.

4: Allows maintenance free and long life operation.

5: Suitable for dirty corrosion impact load and edge loading.

6: The base material provided a good shock absorbing capacity.

7: With low and smoothly coefficient of friction and without stick slip effects

						Designations
ID		OD		B			Weight(KG)
mm	in	mm	in	mm	in
133.35	5.25	196.85	7.75	193.675	7.625	K67390D/K67322-K67322D	20.2
177.8	7	247.65	9.75	192.088	7.5625	K67791DGW/K67720-K67721D	28.6
187.325	7.375	269.875	10.625	211.138	8.3125	KM238849D/KM238810-KM238810D	41.5
190.5	7.5	266.7	10.5	188.912	7.4375	67885D/67820-67820D	32.9
198.438	7.8125	284.162	11.1875	225.425	8.875	M240648DD/M240611-M240611D	32.9
203.2	8	317.5	12.5	266.7	10.5	93800D/93125-93127D	76.3
206.375	8.125	282.575	11.125	190.5	7.5	K67986D/K67920-K67921D	34.4
		282.575	11.125	190.5	7.5	67986D/67920-67921D	34.4
		282.575	11.125	226	8.8976	3806/206X4	40.3
220.662	8.6875	314.325	12.375	239.712	9.4375	KM244249D/KM244210-KM244210D	60.2
		314.325	12.375	239.712	9.4375	M244249DW/M244210-M244210D/HEC9	60.2
		314.325	12.375	239.712	9.4375	M244249DGW/M244210-M244210D/HEC9	59.8
221.224	8.7096	355.498	13.996	228.6	9	EE127094D/127138-127139D	81.8
228.6	9	311.15	12.25	200.025	7.875	LM245149D/LM245110-LM245110D	43.9
		311.15	12.25	200.025	7.875	LM245149DGW/LM245110-LM245110D	43.9
		400.05	15.75	296.875	11.688	EE529091D/529157-529158XD	148
241.478	9.507	349.148	13.746	228.6	9	EE127097D/127135-127136D	71.9
		349.148	13.746	228.6	9	KEE127097D/K127135-K127136D	71.9
244.475	9.625	327.025	12.875	193.675	7.625	KLM247748DW/KLM247710-KLM247710D	42.7
		327.025	12.875	193.675	7.625	LM247748DW/LM247710-LM247710D	42.7
254	10	358.775	14.125	269.875	10.625	M249748D/M249710-M249710D	88.9
		358.775	14.125	269.875	10.625	M249748DW/M249710-M249710D	88.9
		358.775	14.125	269.875	10.625	K3M249748DW/K3M249710-K3M249710D-3	88.9
260.35	10.25	422.275	16.625	317.5	12.5	HM252348D/HM252310-HM252310D	182
266.7	10.5	355.6	14	228.6	9	KLM451349DW/KLM451310-KLM451310D	65.3
		355.6	14	228.6	9	LM451349DW/LM451310-LM451310D	63.9
		355.6	14	228.6	9	K76589/K76520-K76520D
269.875	10.625	381	15	282.575	11.125	M252349DW/M252310-M252310D	105
276.225	10.875	393.7	15.5	269.875	10.625	3806/276X4	105
279.4	11	393.7	15.5	269.875	10.625	KEE135111DW/K135155-K135156D	103
		393.7	15.5	269.875	10.625	EE135111D/135155-135156D	103
		393.7	15.5	269.875	10.625	EE135111DW/135155-135156DW/HEC9	103
		393.7	15.5	269.875	10.625	EE135111DW/135155-135156DW	103
288.925	11.375	406.4	16	298.45	11.75	M255449DW/M255410-M255410D	125
		406.4	16	298.45	11.75	M255449D/M255410-M255410D	125
292.1	11.5	422.275	16.625	269.875	10.625	EE330116D/330166-330167D	126
300.038	11.813	422.275	16.625	311.15	12.25	HM256849D/HM256810-HM256810D	142
304.648	11.994	438.048	17.246	279.4	11	M757448D/M757410-M757410D	130
		438.048	17.246	279.4	11	M757448DW/M757410-M757410D	130
304.8	12	419.1	16.5	269.875	10.625	M257149D/M257110-M257110D	112
		482.6	19	377.825	14.875	3806/304.8	266
		495.3	19.5	342.9	13.5	3806/304.8-1	243
		501.65	19.75	336.55	13.25	3806/304.8-2	255
304.902	12.004	412.648	16.246	266.7	10.5	M257248DW/M257210-M257210D	102
305	12.008	438.048	17.246	279.4	11	M757449DW/M757410-M757410D	129
317.5	12.5	422.275	16.625	269.875	10.625	LM258648DW/LM259610-LM258610D	104
		438.15	17.25	276.225	10.875	3806/317.5	132
		447.675	17.625	327.025	12.875	HM259049D/HM259010-HM259010D	163
330.2	13	444.5	17.5	301.625	11.875	M260149DW/M260110-M260110D	134
330.302	13.004	438.023	17.245	254	10	EE138131D/138172-138173XD	109
333.375	13.125	469.9	18.5	342.9	13.5	HM261049DW/HM261010-HM261010D	186
341.312	13.438	457.098	17.996	254	10	LM761648DW/LM761610-LM761610D	112
		457.098	17.996	254	10	LM761648D/LM761610-LM761610D-3	112
342.9	13.5	533.4	21	301.625	11.875	EE971355D/972100-972103D	239
		571.5	22.5	342.9	13.5	EE536136D/536225-536226D	366
343.052	13.506	457.098	17.996	254	10	K1-LM761649DW/LM761610-LM761610D	110
		457.098	17.996	254	10	LM761649DW/LM761610-LM761610D	110
		457.098	17.996	254	10	LM761649DWSH/LM761610SH-LM761610DSH-3	111
345.281	13.594	488.95	19.25	358.775	14.125	3806/345X4	239
346.075	13.625	488.95	19.25	358.775	14.125	HM262749D/HM262710-HM262710D	221
347.662	13.688	469.9	18.5	292.1	11.5	M262449D/M262410-M262410D	142
		469.9	18.5	260.35	10.25	LM262449DW/LM262410-LM262410D	129
355.6	14	482.6	19	265.114	10.4376	3806/355.6/HCC9	139
		488.95	19.25	317.5	12.5	M263349D/M263310-M263310D	177
		488.95	19.25	317.5	12.5	M263349D/M263310-M263310D-XRS	165
368.3	14.5	523.875	20.625	382.588	15.0625	HM265049DW/HM265010-HM265010D	274
374.65	14.75	501.65	17.948	260.35	10.25	EE231475D/231975-231976D	141
384.175	15.125	546.1	21.5	400.05	15.75	HM266449DW/HM266410-HM266410CD	310
		546.1	21.5	400.05	15.75	HM266449DW/HM266410-HM266410D-XRS/C9YB2	293
385.762	15.188	514.35	20.25	317.5	12.5	LM665949DW/LM665910-LM665910D	189
406.4	16	546.1	21.5	288.925	11.375	EE234161D/234215-234216D	182
		546.1	21.5	288.925	11.375	LM767749DW/LM767710-LM767710D	186
		546.1	21.5	330	12.9921	3806/406.4	223
		565.15	22.25	381	15	M267949D/M267910-M267910XD	298
		590.55	23.25	400.05	15.75	EE833161D/833232-833233D	371
409.575	16.125	546.1	21.5	334.962	13.1875	M667947DW/M667910-M667910D	206
		546.1	21.5	334.962	13.1875	M667947D/M667910-M667910D	213
		546.1	21.5	334.962	13.1875	M667947DW/M667910-M667910D-XRS/HEC9YB2	205
415.925	16.375	590.55	23.25	434.975	17.125	M268749D/M268710-M268710D	369
431.8	17	571.5	22.5	279.4	11	LM869449DW/LM869410-LM869410D	199
		571.5	22.5	336.55	13.25	LM769349D/LM769310-LM769310D	233
		635	25	355.6	14	EE931070D/931250-931251XD	386
444.5	17.5	571.5	22.5	336.55	13.25	3806/444.5	216
447.6	17.622	635	25	463.5	18.248	3806/447.6	472
447.675	17.625	636	25.0394	463.55	18.25	M270749DW/M270710-M270710D	486
449.949	17.715	594.949	23.4232	368	14.4882	M270448DGW/M270410/DB-3	300
457.073	17.995	730.148	28.746	419.1	16.5	3806/457X4	628
457.2	18	596.9	23.5	279.4	11	L770847DW/L770810-L770810D	202
		596.9	23.5	320	12.5984	3806/457.2	234
460*		625		421		M271149D/M271110-M271110D	375
		625*		421		M271149DW/M271110-M271110D-XRS/C9YB2	366
462	18.189	596.9	23.5	330.2	13	3806/462	276
479.425	18.875	679.45	26.75	495.3	19.5	M272749D/M272710-M272710D	586
482.6	19	615.95	24.25	330.2	13	LM272249DW/LM272210-LM272210D	252
		615.95	24.25	400		3806/482.6-XRS/HCEC9YAB	299
		615.95	24.25	330.2	13	3806/482.6-1	251
		615.95	24.25	330.2	13	3806/482.6-2	263
		615.95	24.25	402.05	15.8287	3806/482.6-3	246
