Four Point Angular Contact Ball Bearing71917AC 71918C 71918AC 71919C 71919AC 71920C 71920AC 71921C 71921AC 71922C 71922AC 71924C 71924AC 71926C 71926AC 71928C 71928AC 71930C 71930AC

contact ball bearing
machine bearing

Wechat/Whatsapp: 008613791051960

Emial: bruce@ufinebearing.com

Ufine Bearing CO., LTD is a Chinese bearing manufacturer which is located in the city of JiNan - the provincial capital of ShanDong province, China. The enterprise professional concentrates on manufacturing all kinds of bearings as our own brand “UFE”, mainly include roller bearings and ball bearings. And we have also set a long-term cooperation with several famous bearing companies in the world, such as NSK, NACHI, KOYO, INA. The products we produce have already been sold to all over China and also abroad, the bearing brand “UFE” enjoys high states in the rolling bearing industry of China and is highly praised by our customers.

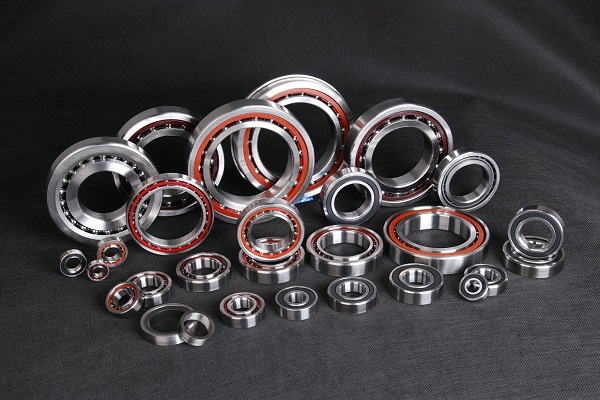

Angular contact ball bearings have inner and outer ring raceways that are displaced relative to each other in the direction of the bearing axis. This means that these bearings are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases as the contact angle increases. The contact angle is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the combined load is transmitted from one raceway to another, and a line perpendicular to the bearing axis

The most commonly used designs are:

single row angular contact ball bearings

double row angular contact ball bearings

four-point contact ball bearings

In addition to the bearings presented in this section, other angular contact ball bearings include:

Super-precision angular contact ball bearings

Double row cam rollers

Fixed section angular contact ball bearings

Hub bearing units

List :

NO.	SIZE (mm)
NO.	d	D	B	r	r1
71900C	10	22	6	0.3	0.1
71900AC	10	22	6	0.3	0.1
71901C	12	24	6	0.3	0.3
71901AC	12	24	6	0.3	0.3
71902C	15	28	7	0.3	0.3
71902AC	15	28	7	0.3	0.3
71903C	17	30	7	0.3	0.3
71903AC	17	30	7	0.3	0.3
71904C	20	37	9	0.3	0.3
71904AC	20	37	9	0.3	0.3
71905C	25	42	9	0.3	0.3
71905AC	25	42	9	0.3	0.3
71906C	30	47	9	0.3	0.3
71906AC	30	47	9	0.3	0.3
71907C	35	55	10	0.6	0.6
71907AC	35	55	10	0.6	0.6
71908C	40	62	12	0.6	0.6
71908AC	40	62	12	0.6	0.6
71909C	45	68	12	0.6	0.6
71909AC	45	68	12	0.6	0.6
71910C	50	72	12	0.6	0.6
71910AC	50	72	12	0.6	0.6
71911C	55	80	13	1	1
71911AC	55	80	13	1	1
71912C	60	85	13	1	1
71912AC	60	85	13	1	1
71913C	65	90	13	1	1
71913AC	65	90	13	1	1
71914C	70	100	16	1	1
71914AC	70	100	16	1	1
71915C	75	105	16	1	1
71915AC	75	105	16	1	1
71916C	80	110	16	1	1
71916AC	80	110	16	1	1
71917C	85	120	18	1.1	1.1
71917AC	85	120	18	1.1	1.1
71918C	90	125	13	1.1	1.1
71918AC	90	125	13	1.1	1.1
71919C	95	130	18	1.1	1.1
71919AC	95	130	18	1.1	1.1
71920C	100	140	20	1.1	1.1
71920AC	100	140	20	1.1	1.1
71921C	105	145	20	1.1	1.1
71921AC	105	145	20	1.1	1.1
71922C	110	150	20	1.1	1.1
71922AC	110	150	20	1.1	1.1
71924C	120	165	22	1.1	1.1
71924AC	120	165	22	1.1	1.1
71926C	130	180	24	1.5	1.5
71926AC	130	180	24	1.5	1.5
71928C	140	190	24	1.5	1.5
71928AC	140	190	24	1.5	1.5
71930C	150	210	28	2	1
71930AC	150	210	28	2	1
