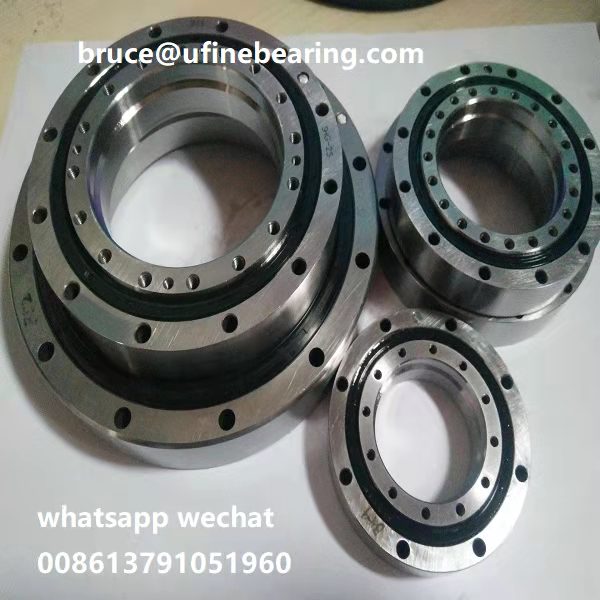

CRBFV3515AT Crossed Roller Bearings

CRBFV3515AT
Crossed Roller Bearings

Email：bruce@ufinebearing.com

Whatsapp/wechat: 008613791051960

UFINE BEARING CO., LTD

New Designations :

CRBFV3515AT

Category :

Crossed Roller Bearings

Detailed parameters and installation dimensions:

The equivalents of IKO Item	CRBFV3515AT
The equivalents of THK Item	RU66
Bearing Type	Crossed Roller Bearings
Roller Bearing Type	Crossed
Load Direction	Combined Radial; Thrust; and Moment
Number Of Rows	Single Row
Sealing Type	Open
Grade Of ABEC Accuracy	ABEC-5 ABEC-7 ABEC-9
Ring Material	Steel
Roller Material	Steel
Shaft dia. mm	35
Mass(kg)	0.62
Inside (d)	35
Outside (D)	95
Width (B)	15
Greasing hole(d1)	3.1
r(min)	0.6
ds(max)	59
Dh(min)	74
Basic load rating (radial)C kN	17.5
Radial load rating Co kN	22.3
Inner ring PCD1	45
Lubrication	Required
Shaft Mount Type	Press Fit
Operating Temperature Range	0 -230
Inner ring Mounting hole	8-M4 through
Outer ring PCD2	83
Outer ring Mounting hole	8-φ4.5 through φ8 counter bore depth 4.4

Crossed Roller Bearings CRBFV3515AT, (-*-*- mm),

Min. Order: 1 Piece
CRBFV3515AT Price: Different quality, different prices, different prices from different suppliers, detailed price inquiry to the right suppliers
Precision Rating: P0~P2 ; ABEC1~ABEC9
Inquiry ways: The right of the inquiry form, Email, skype, Whatsapp
